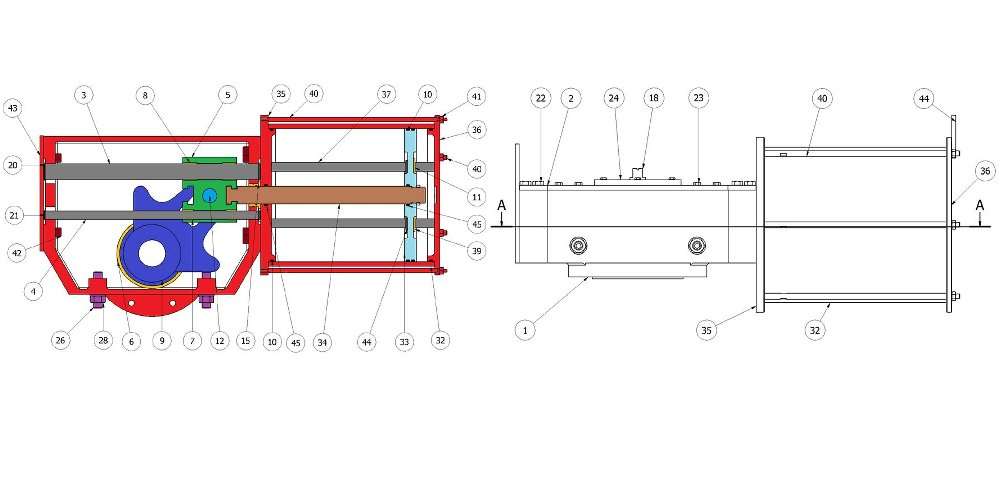

Components (DA)
| Element | Description | Quantity | Material | Treatment |
|---|---|---|---|---|
| 1 | Body | 1 | Carbon Steel | Epoxy Painted |
| 2 | Cover | 1 | Carbon Steel | Epoxy Painted |
| 3 | Trolley Guide bar 1 | 1 | Chromed Steel | |
| 4 | Trolley Guide bar 2 | 1 | Chromed Steel | |
| 5 | Trolley | 1 | Carbon Steel | Phosphate treated |
| 6 | Yoke Bush | 2 | Bronze | |
| 7 | Trolley bush 1 | 1 | Bronze | |
| 8 | Trolley bush 2 | 1 | Bronze | |
| 9 | Yoke | 1 | Carbon Steel | Phosphate treated |
| 10 | O-ring piston | 4 | Nitrile | |
| 11 | O-ring piston bush | 12 | Nitrile | |
| 12 | Pin | 1 | Steel | Phosphate treated |
| 15 | Lateral Bush | 1 | Bronze | |
| 18 | NAMUR adaptor | 1 | Aluminium | Epoxy Painted |
| 20 | Retaining Rings | 2 | Nickel treated | |
| 21 | Retaining Rings | 2 | Nickel treated | |
| 22 | Cover screws | 10 | ||
| 23 | Cover screws | 5 | ||
| 24 | Upper closing flange | 1 | Carbon Steel | Epoxy Painted |
| 26 | Adjusting screw | 2 | ||
| 28 | Adjusting nut | 2 | ||
| 32 | Cylinder housing | 1 | Carbon Steel | Nickel treated / Epoxy painted |
| 33 | Piston | 1 | Carbon Steel | Phosphate treated |
| 34 | Piston rod | 1 | Chromed Steel | |
| 35 | Anterior Flange | 1 | Carbon Steel | Epoxy Painted |
| 36 | Posterior Flange | 1 | Carbon Steel | Epoxy Painted |
| 37 | Piston Guide Bar | 3 | Chromed Steel | |
| 38 | Fixing nut | 1 | ||
| 39 | Guide bar bush | 3 | Bronze | |
| 40 | Tie bar | 6 | Carbon Steel | Epoxy Painted |
| 44 | Retaining Rings | 3 | Nickel treated | |
| 45 | Piston rod O-ring | 2 | Nitrile | |
| 51 | Nut | 6 | Epoxy Painted | |
| 52 | Double Acting lateral flange | 1 | Carbon Steel | Epoxy Painted |

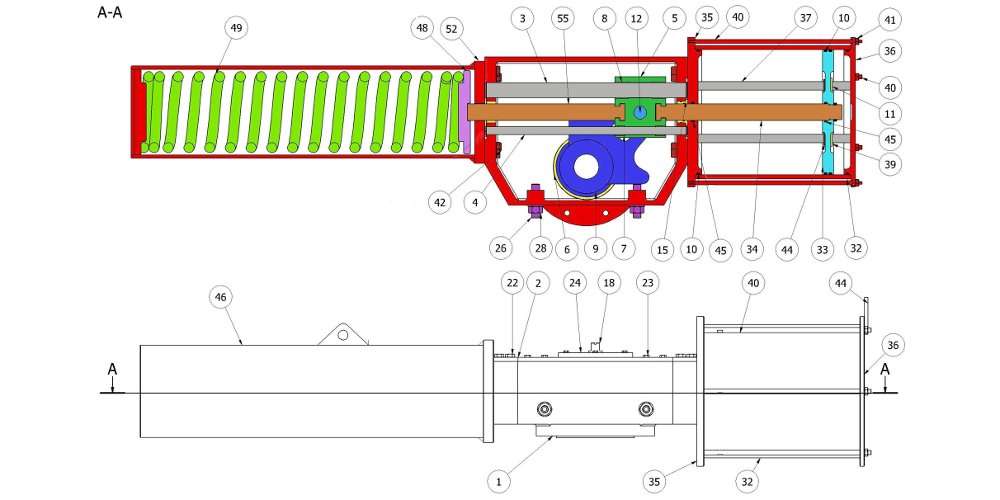

Components (SR)
| Element | Description | Quantity | Material | Treatment |
|---|---|---|---|---|
| 1 | Body | 1 | Carbon Steel | Epoxy Painted |
| 2 | Cover | 1 | Carbon Steel | Epoxy Painted |
| 3 | Trolley Guide bar 1 | 1 | Chromed Steel | |
| 4 | Trolley Guide bar 2 | 1 | Chromed Steel | |
| 5 | Trolley | 1 | Carbon Steel | Phosphate treated |
| 6 | Yoke Bush | 2 | Bronze | |
| 7 | Trolley bush 1 | 1 | Bronze | |
| 8 | Trolley bush 2 | 1 | Bronze | |
| 9 | Yoke | 1 | Carbon Steel | Phosphate treated |
| 10 | O-ring piston | 4 | Nitrile | |
| 11 | O-ring piston bush | 12 | Nitrile | |
| 12 | Pin | 1 | Steel | Phosphate treated |
| 15 | Lateral Bush | 1 | Bronze | |
| 18 | NAMUR adaptor | 1 | Aluminium | Epoxy Painted |
| 22 | Cover screws | 10 | ||
| 23 | Cover screws | 5 | ||
| 24 | Upper closing flange | 1 | Carbon Steel | Epoxy Painted |
| 26 | Adjusting screw | 2 | ||
| 28 | Adjusting nut | 2 | ||
| 32 | Cylinder housing | 1 | Carbon Steel | Nickel treated / Epoxy painted |
| 33 | Piston | 1 | Carbon Steel | Phosphate treated |
| 34 | Piston rod | 1 | Chromed Steel | |
| 35 | Anterior Flange | 1 | Carbon Steel | Epoxy Painted |
| 36 | Posterior Flange | 1 | Carbon Steel | Epoxy Painted |
| 37 | Piston Guide Bar | 3 | Chromed Steel | |
| 38 | Fixing nut | 1 | ||
| 39 | Guide bar bush | 3 | Bronze | |
| 40 | Tie bar | 6 | Carbon Steel | Epoxy Painted |
| 41 | Nut | 6 | Epoxy Painted | |
| 44 | Retaining Rings | 3 | Stainless Steel | |
| 45 | Piston rod O-ring | 2 | Nitrile | |
| 46 | Spring Cartridge | 1 | Carbon Steel | Epoxy Painted |
| 48 | Spring Plate | 1 | Carbon Steel | |
| 49 | Spring | 1 | SiCr | Epoxy Painted |
| 52 | Spring Cartridge Closing Flange | 1 | Carbon Steel | Epoxy Painted |
| 55 | Spring Rod | 1 | Chromed Steel | |
| / | Spring guide bar | 3 | Chromed Steel | |
| / | Spring guide bar bush | 3 | Bronze | |
| / | Bush retaining Rings | 3 | Stainless Steel |
